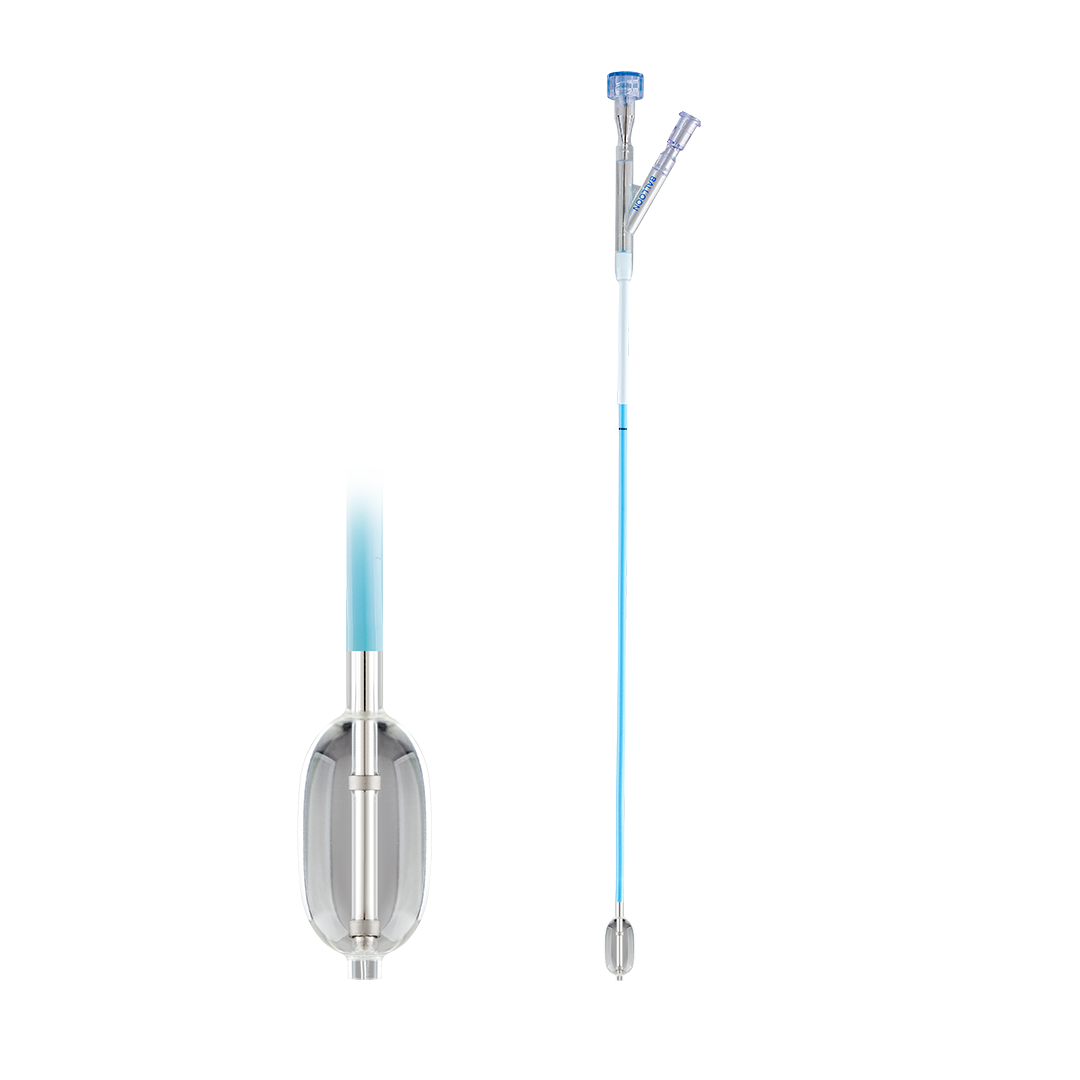

Balloon

$99.00 USD

~~$99.00 USD~~ $99.00 USD

Sale Sold out

Specifications Φ9×10 1.5ml Φ9×15 2ml Φ12×19 3ml Φ14×17 3.5ml Φ17×22 4ml

Quantity

Product Overview

• Purpose: Designed to elevate the collapsed vertebral body and create an internal cavity for bone cement injection.

• Specifications: Available in a complete range of models and sizes to accommodate patient-specific anatomical differences.

• Indications: Treatment of thoracic and lumbar vertebral compression fractures.

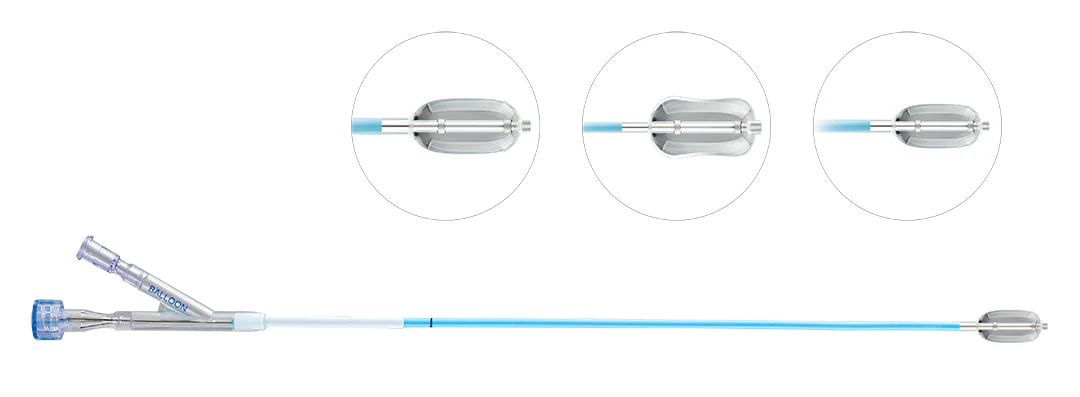

• Balloon Performance:

• Contracted state: Smoothly passes through a stainless steel tube with an inner diameter of 3.5 mm.

• Expansion state: Recommended maximum working pressure is 20.5 atm (≈300 psi). Do not exceed the rated pressure of 27 atm (≈400 psi).

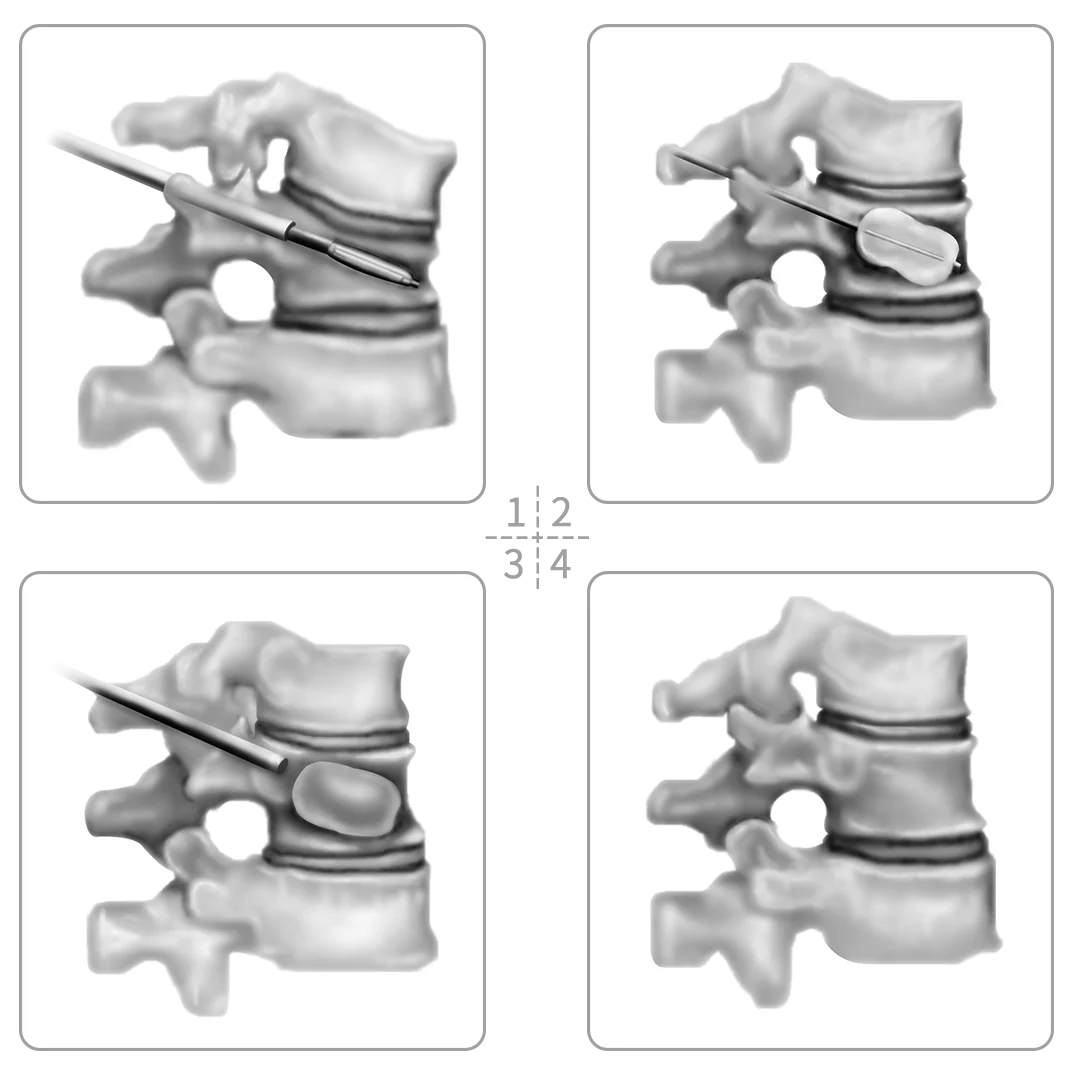

Surgical Demonstration – Overview

The vertebral forming unitized surgical instruments are newly developed products, created in collaboration with experts in orthopedics and radiology. They are designed for the surgical management of:

• Benign and malignant vertebral tumors

• Osteoporotic vertebral compression fractures

Applicable for both percutaneous vertebroplasty (PVP) and percutaneous kyphoplasty (PKP), the instruments feature a rational structure, ease of operation, and consistent clinical reliability.

Scope of Application

• Surgical treatment of benign and malignant vertebral tumors

• Management of osteoporotic vertebral compression fractures

Precautions

• Refer to the official Instructions for Use (IFU) for detailed guidance.

• Images shown are for reference only; actual product configuration may vary.

• Must be used in combination with acrylic bone cement.

Contraindications

• Spinal infections (e.g., osteomyelitis, epidural cysts)

• Vertebral body collapse exceeding 70%

• Severe spinal cord compression or secondary spinal canal stenosis at the target level

• Destruction or defect of the posterior vertebral wall
